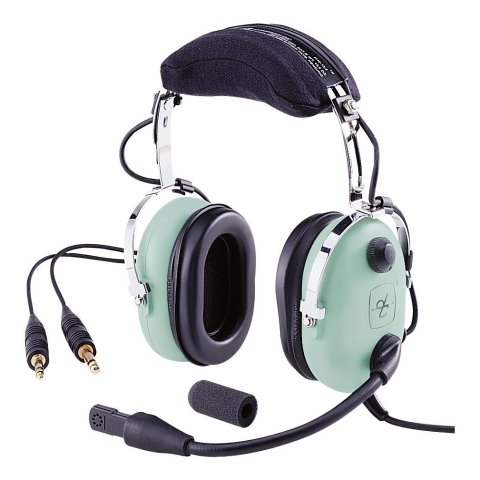

HEADSET DAVID CLARK H10-13S (Stereo)

Description

Head Set David Clark H10.13 Stereo
AVIATION HEADSET DAVID CLARK H10-13
Headset David Clark ini di desain dengan Dual plug mic & headphone untuk pesawat komersil fixed wing (Cessna single engine, multi engine, Boeing & airbus dual plug) untuk Helicopter atau pesawat militer diperlukan pergantian 150 ohm impedance microphone (tidak termasuk)

Special Features: Passive
Earphone Type:DynamicNoise-Canceling
Mic:M-7A Amplified Electret
Earphone Impedance:150 ohms(300 each; wired in parallel)
Mic Impedance:50 ohms +/- 20%
Earphone Sensitivity:90 dB
SPL on flat plate coupler, re 1mW input @ 1KHzMic
Sensitivity:400mV
RMS ±6dB into 150 ohm load @ 1kHz for 114dB SPL input
Earphone Frequency Response:200-5,500 HzMic Freq Response:300Hz–3.5KHz per RTCA DO 214
Earphone Plug:PJ-055 (.25″ phone plug)
Mic Plug:PJ-068 (.206″ phone plug)
Boom Type:Universal Flex
Cord:5 ft.Straight
Headpad/Hardware:Super-Soft, Double-Foam
Headpad,Lightweight
HardwareWeight/Headset Only:16.5 oz.
NOTE:
Dual plug mic & headphone untuk pesawat komersil fixed wing (Cessna single engine, multi engine, Boeing & airbus dual plug) untuk Helicopter atau pesawat militer diperlukan pergantian 150ohm impedance microphone (tidak termasuk)
